Bilton: streets and houses
Bilton is an old place. It appears in the Domesday Book of 1086 as Billeton, the "farmstead of a man named Billa", and for centuries it was a township in the parish of Knaresborough, shared with Harrogate. It stayed outside the borough when Harrogate was incorporated in 1894 and was only absorbed into the town in 1938. The Leeds and Thirsk Railway crossed it from 1848, leaving the stone viaduct over the River Nidd on Bilton's northern edge, and the land west of the line filled with housing through the 19th and 20th centuries.

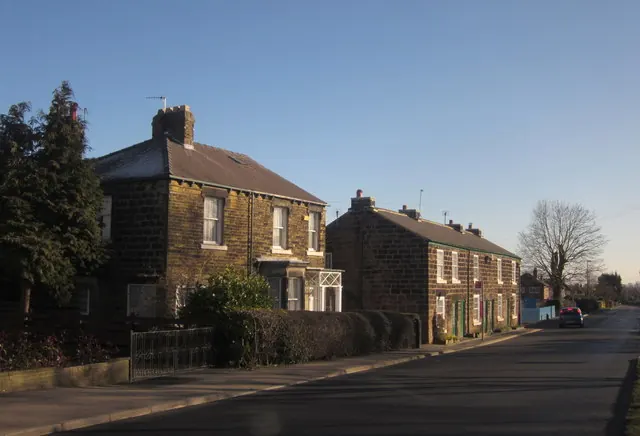

The result is a mix. Bilton Lane still has gritstone cottages and farmhouses from the older village, including Knox House Farm, while the roads off it are lined with inter-war and post-war semi-detached houses and some newer estates. The 2021 Census for the Bilton and Nidd Gorge ward records 42.7% semi-detached homes, 21.5% detached, 14.2% terraced and 18.4% flats.

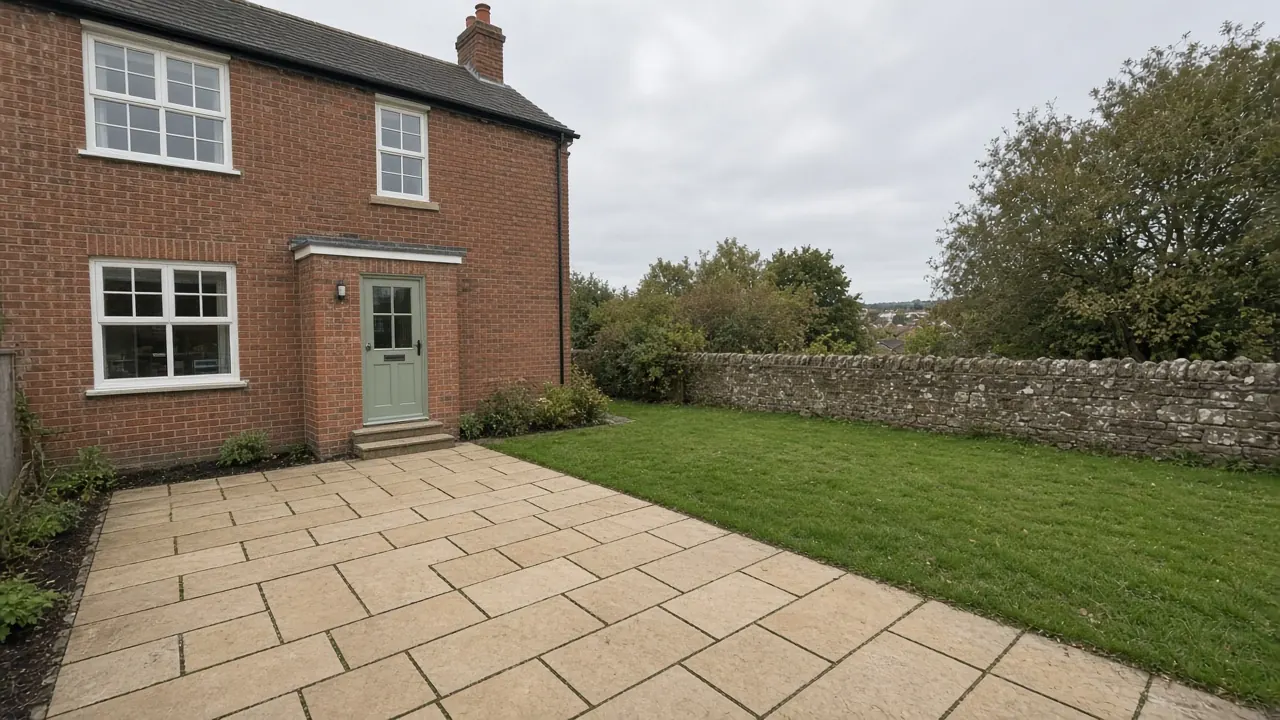

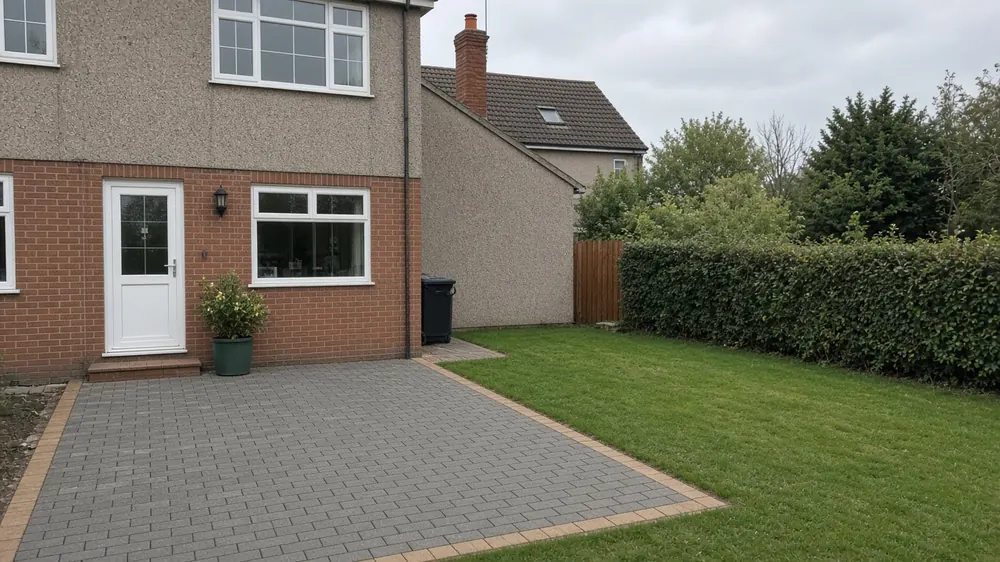

Gardens follow the houses. The semis usually have long back gardens with a narrow side access. The older stone properties have walled plots that can be uneven or step down from the house. Popular projects include a full-width terrace outside new doors, a stone patio to replace cracked concrete and a sheltered corner for an evening table.
Ground, stone and drainage
The British Geological Survey maps Bilton on the Harrogate Till, a gravelly sandy clay left by glaciers, over the Addlethorpe Grit, a Millstone Grit sandstone. Till is firm when dry but holds water after rain, and its texture can change within a single garden.
We dig out topsoil and any soft or wet patches, lay a geotextile where the clay is soft and build a compacted crushed-stone sub-base. Each slab goes onto a full mortar bed, and the finished surface sits below the damp-proof course, falling away from the house. On heavier ground we take water to a drain or a channel at the edge of the patio rather than let it run onto the lawn.
The Environment Agency shows no river flood zone within 750 metres, but its surface water map marks a number of low points. A garden that already holds puddles after storms tells us where the fall and the drainage need the most care.
Levels and steps
Many Bilton gardens are close to level, which keeps a patio simple. Where a garden does fall, typically behind the older houses or toward the gorge, we can set the terrace level with the back door and step down to the lawn with wide stone steps. Planning rules generally treat a patio raised more than 300 mm above the ground as needing permission, so we design raised terraces carefully and tell you if a lower layout would avoid an application.
Listed buildings in Bilton
Around a dozen buildings and structures nearby are listed, including St John's Church (Grade II), Grove House (Grade II), Knox House farmhouse and its barn, Gardner's Arms Cottages and the old Endowed School. Work within the grounds of a listed building may need listed building consent, even in a back garden. For most homes, a ground-level patio at the back is permitted development. Front gardens are different: more than five square metres of new non-permeable paving at the front needs planning permission unless water drains to a border or permeable area.
Planning the layout in Bilton
Before suggesting a design we look at how the garden is used and where the sun falls. Many Bilton semis face roughly the same way along a street, so neighbours often share the same light, and a terrace by the house may be in shade by late afternoon. In that case a second, smaller patio further down the garden, linked by a path, can catch the evening sun. Fences and mature trees along the old lanes also cast shade, which affects the choice of surface: riven stone in deep shade can turn green, while sawn stone or porcelain stays cleaner.
We also think about the route from the back door. A patio should be wide enough to walk around a table and chairs, usually at least three metres deep, and it should line up with doors and windows rather than sit awkwardly to one side. On the older stone properties along Bilton Lane, we aim to keep paving in proportion to the house and its walls.
Pricing a Bilton patio
Every quote follows a visit. In Bilton the price depends on:
- Size and shape. Full-width terraces or a separate seating area.
- Ground. Soft clay replaced by compacted stone.
- Drainage. Channels or connections where the till holds water.
- Steps. Wider steps or a low wall in a sloping plot.
- Material. Yorkstone, sandstone, porcelain or block paving.
- Removal. Taking up old concrete or slabs.
More places near Bilton
- Patio design in Starbeck: South-east: a railway village with Victorian terraces and a spa conservation area.
- Patio design in Knaresborough: East, over the Nidd: a market town on a limestone gorge.
- Patio design in Killinghall: North-west: a commuter village on the A61.
Patio types that suit Bilton: yorkstone & sandstone, block paved patios, porcelain paving.
The full list of areas: All areas.
Patio FAQs for Bilton
Our semi has a long, narrow garden. Where should the patio go?
Usually across the back of the house, with a path to a second seating spot where the evening sun falls. We look at the light on the visit.
Is the ground in Bilton good for a patio?
It is workable, but the clay holds water, so a deep compacted base and a fall to a drain matter.
Can stone from an old patio be reused?
Often, if the flags are sound. Reclaimed Yorkstone can be cleaned and relaid on a proper base.
Do I need permission for a back-garden patio?
Not usually, unless it is raised over 300 mm or the house is listed.
Sources: ONS Census 2021 TS044, Bilton & Nidd Gorge ward (Nomis); Wikipedia: Bilton, Harrogate; Planning Data: listed buildings; BGS Geology Viewer; Environment Agency Flood Map for Planning.
